Replacing rubber mount

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 328xi, 2009 BMW 328xi, and 2008 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove both COMPRESSION STRUTS .

Using a press and special tools 31 3 031 and 31 3 032, press rubber mount out of tension strut.

NOTE: Special tool 31 3 031 must be exactly flush with rubber mount bush.

Fig 1: Pressing Rubber Mount Using 31 3 031 And 31 3 032

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Keep rubber mount and bushing in compression strut clean and free from grease.

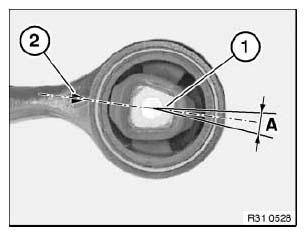

Align rubber mount by way of opening (1) in bushing to marking (2) on compression strut and press in. The deviation (A) must not exceed ± 5°.

Fig 2: Identifying Rubber Mount Alignment Position

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Protrusion (A) equally large.

Fig 3: Identifying Protrusion

Courtesy of BMW OF NORTH AMERICA, INC.
