Necessary preliminary tasks

• Remove front wheel.

Version with xenon lights:

Release nut (1) and remove jointed rod (2) from control arm (3).

Installation:

Replace self-locking nut.

Tightening torque, see 3 14 3AZ in 37 14 ELECTRIC COMPONENTS .

Fig 1: Identifying Jointed Rod Of Control Arm With Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove bolt (2) towards front.

Press swivel bearing in area of compression strut outwards and remove control arm from front axle carrier.

Installation:

Make sure that diesel enclosure is correctly positioned to side of control arm.

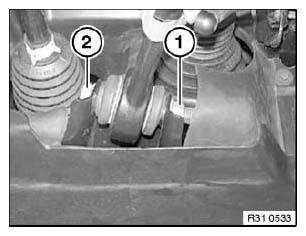

Fig 2: Identifying Compression Strut With Nut And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Replace self-locking nut.

Tightening torque 31 12 3AZ .

Release nut (1) approx. 3□-4 thread turns; if necessary, grip at hexagon.

If necessary, replace lower section 31 2 242 with lower section 31 2 246.

Press off wishbone from swivel bearing using special tool 31 2 240 (consisting of 31 2 241, 31 2 243, 31 2 244, 31 2 245 and 31 2 246).

Unscrew nut (1) and remove control arm.

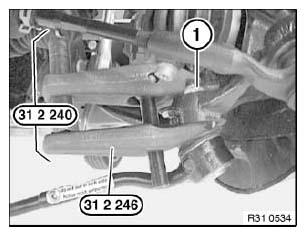

Fig 3: Pressing Of Wishbone From Swivel Bearing Using Special Tool 31 2 240

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Keep journal on ball head and bushing in swivel bearing clean and free from oil and grease.

Replace self-locking nut.

Tightening torque 31 12 4AZ .
