Necessary preliminary tasks
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 328xi, 2009 BMW 328xi, and 2008 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
- Secure engine in installation position. See 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N52K, N53) to prevent it from falling down.
- Remove front wheels.
- Remove STABILIZER
- Only on right side: Remove front ride-height sensor with bracket from front axle carrier
- Remove BOTH COMPRESSION STRUTS FROM FRONT AXLE CARRIER
- Remove BOTH CONTROL ARMS ON BOTH SIDES FROM FRONT AXLE CARRIER

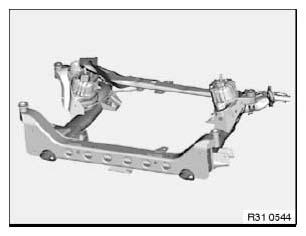

- Lower FRONT AXLE CARRIER

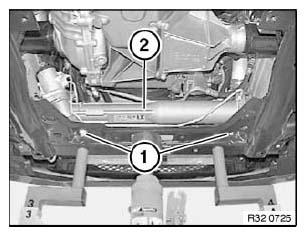

Release nuts and remove screws (1) towards bottom.
Tie up power steering gear (2).
Installation:
Replace screws and nuts.
Tightening torque 32 00 1AZ .
Lower front axle carrier and take down from special tool.
Remove heat shield(s).
Remove both ENGINE MOUNTS and if necessary remove with vacuum lines from front axle carrier.
Take front axle carrier down and set down on a suitable surface.
Installation:
Use previous front axle carrier as a template for modifying or replacing small parts.
