31 10 010 Removing and installing/replacing reinforcement plate (AWD)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 328xi, 2009 BMW 328xi, and 2008 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe safety instructions for raising the vehicle. See LIFTING VEHICLE WITH A LIFTING PLATFORM
.
Driving without reinforcement plate is not permitted!
Driving without reinforcement plate is not permitted!

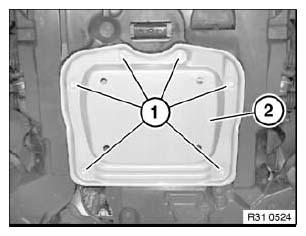

Release screws (1).
Remove reinforcement plate (2).
Installation:
Replace screws.
Tightening torque 31 10 3AZ .
