Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328xi, 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 335xi, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE PROPELLER SHAFT.

Completely fill centering bore (1) with viscous grease.

Drive special tool 11 1 310 with a plastic hammer into centering bore.

The centering mount (1) is forced out of the propeller shaft by the pressure on the grease filling.

If necessary, top up grease repeatedly.

NOTE: To drive out the mount, you can also fill the centering bore with water instead of grease.

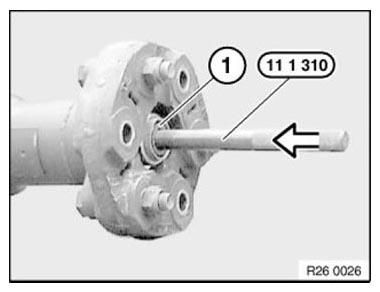

Fig 1: Driving Special Tool 11 1 310 Using Plastic Hammer Into Centering Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The grease or water must be removed from the bearing bore.

Drive in centering mount (1) with special tools 11 2 030 and 00 5 500 into propeller shaft (observe protrusion).

IMPORTANT: Plastic centering mount must not be greased.

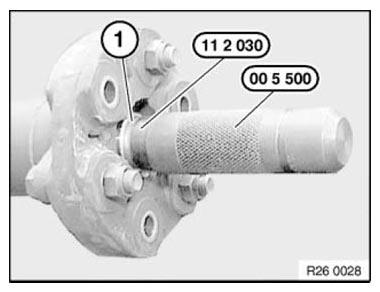

Fig 2: Installing Centering Mount Using Special Tools 11 2 030 And 00 5 500 Into Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
