26 11 090 Removing and installing/replacing front centering mount for propeller shaft: Installation

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328xi, 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 335xi, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Observe protrusion A = 4⁺² mm of centering (1).

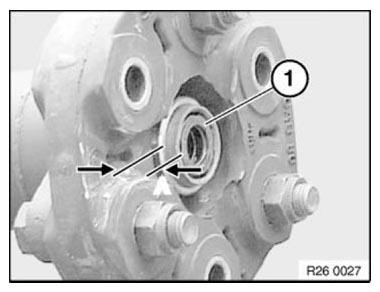

Fig 1: Identifying Protrusion

Courtesy of BMW OF NORTH AMERICA, INC.
