26 11 000 Removing and installing complete propeller shaft (flexible disc at rear): Installation

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328xi, 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 335xi, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Replace ZNS bolts and self-locking nuts.
Grip mounting bolts of flexible disc at nuts and tighten down by way of bolts.

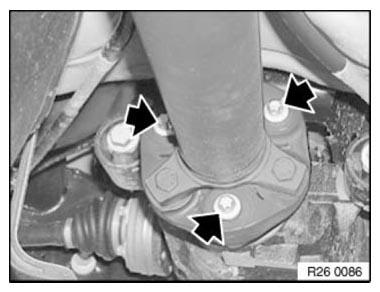

Fig 1: Identifying Flexible Disc Mounting Bolts
Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws/bolts to specified torque.

Secure angle-of-rotation special tool 00 9 120 with magnets 00 9 130 to vehicle underbody and screw down further according to angle of rotation.

Tightening torque: 26 11 1AZ .

Fig 2: Securing Angle-Of-Rotation Using Special Tool 00 9 120 With Magnets 00 9 130

Courtesy of BMW OF NORTH AMERICA, INC.

Release flexible disc screws at rear.

Installation:

Replace ZNS bolts and nuts.

Fig 3: Identifying Flexible Disc Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws/bolts to specified torque.

Secure angle-of-rotation special tool 00 9 120 with magnets 00 9 130 to vehicle underbody and screw down further according to angle of rotation.

Tightening torque: 26 11 4AZ .

Fig 4: Securing Angle-Of-Rotation Using Special Tool 00 9 120 With Magnets 00 9 130

Courtesy of BMW OF NORTH AMERICA, INC.

Grip propeller shaft at center mount and release screws.

Tightening torque: 26 11 6AZ .

Detach propeller shaft from transmission output flange and remove towards bottom.

Fig 5: Identifying Propeller Shaft Centre Mount With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check centering mount.

If necessary, replace damaged CENTRE BEARING .

Grease centering mount.

Fig 6: Locating Centering Mount

Courtesy of BMW OF NORTH AMERICA, INC.
