26 20 000 Removing and installing front propeller shaft

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328xi, 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 335xi, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not move vehicle with drive power once propeller shaft has been removed.

IMPORTANT: Replacement only

Necessary Preliminary Tasks

Remove underbody protection.

Release screws. Installation note: Replace ZNS bolts. Tightening torque: jointing torque: 20 Nm, angle of rotation: 45 degrees.

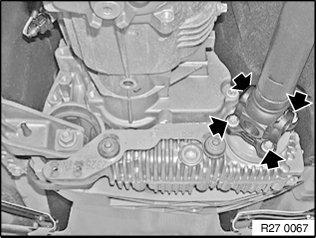

Fig 1: Identifying 4 Propeller Shaft Screws (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws. Remove propeller shaft. Installation note: Replace ZNS bolts. Tightening torque: jointing torque: 20 Nm, angle of rotation: 45 degrees.

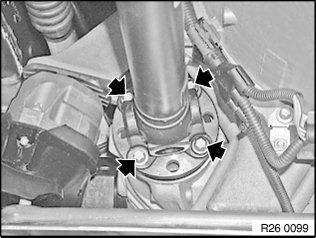

Fig 2: Identifying 4 Propeller Shaft Screws (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
