33 10.. Overview of rear differential/output shafts

WARNING: This page is about a different car, the 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 328xi, and 2009 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

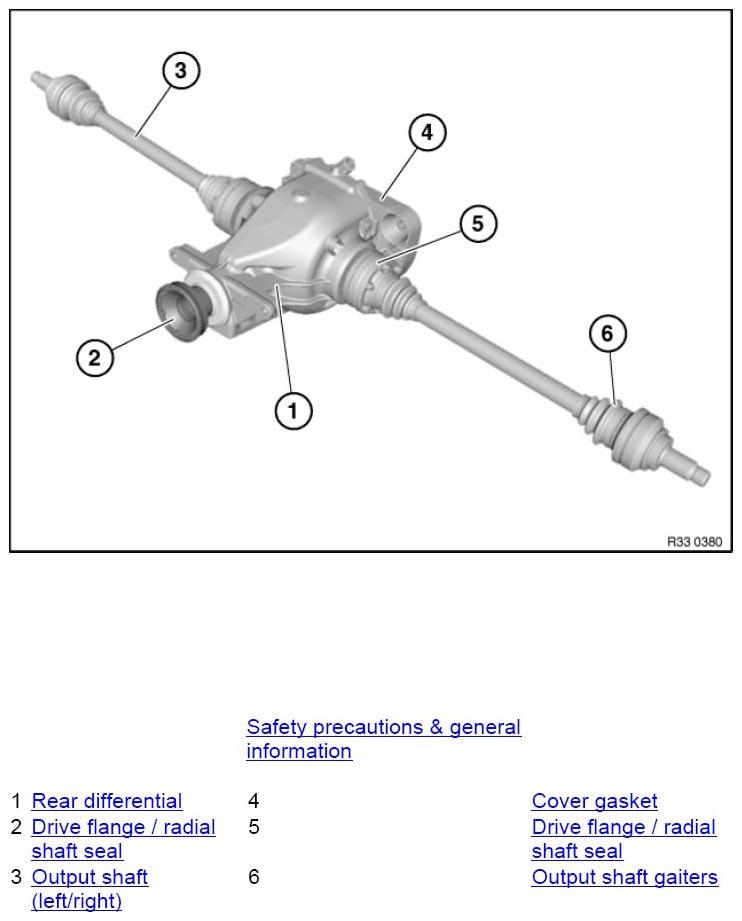

Fig 1: Identifying Rear Differential/Output Shafts
G06965352Courtesy of BMW OF NORTH AMERICA, INC.
