32...... Overview of steering wheel/casing components

WARNING: This page is about a different car, the 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 328xi, and 2009 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

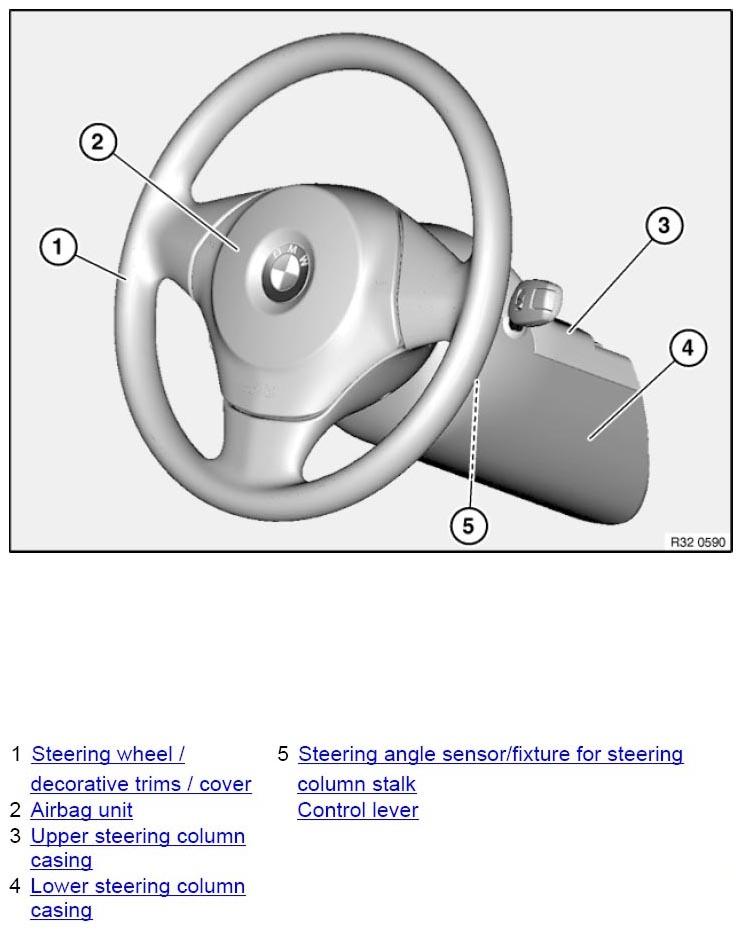

Fig 1: Overview Of Steering Wheel/Casing Components
G06965253Courtesy of BMW OF NORTH AMERICA, INC.
