32 00... General chassis and suspension definitions

WARNING: This page is about a different car, the 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 328xi, and 2009 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

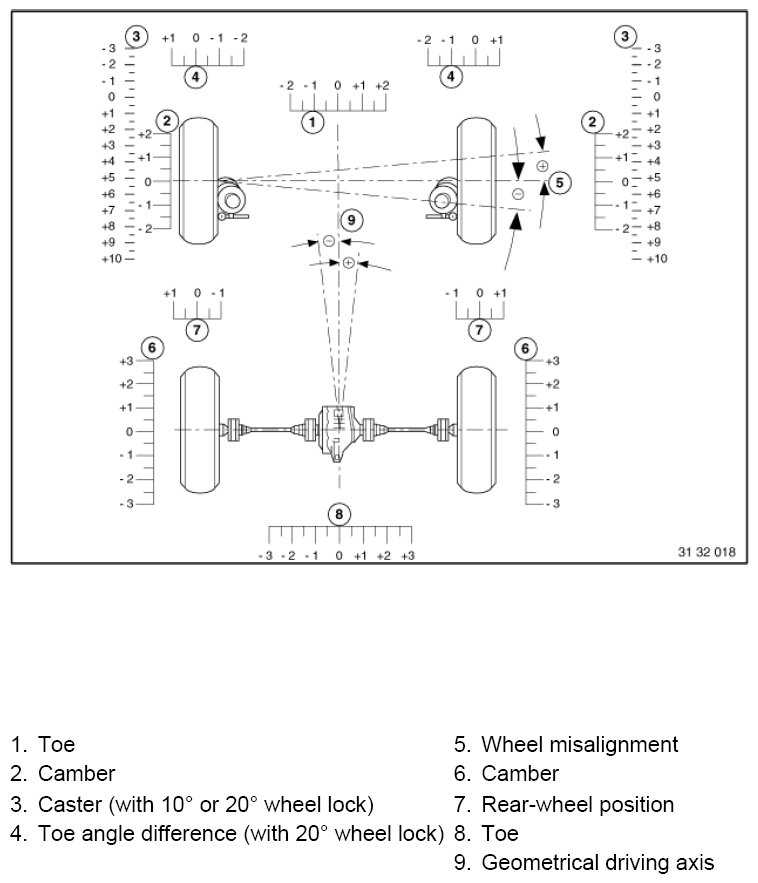

Fig 1: Identifying Chassis And Suspension Specifications
G06965232Courtesy of BMW OF NORTH AMERICA, INC.
