84 11 519 Removing and installing or replacing eject box

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Pull off gaiter (1) towards top.

Disconnect plug connection (2).

Unclip plug connection for antenna lead from mounting and disconnect.

Fig 1: Pulling Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Snap out eject box (1) with special tool 00 9 340 REMOVAL AID on inner side of trim (2).

Pull eject box (1) on inner side upwards slightly.

Fig 2: Removing Eject Box Using Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Snap out eject box (1) with special tool 00 9 340 REMOVAL AID on outer side of trim (2).

Lift out eject box (1) and feed out wiring harness.

Installation:

Make sure wiring harness is correctly laid.

Eject box (1) must snap audibly into trim (2).

Fig 3: Removing Eject Box Using Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

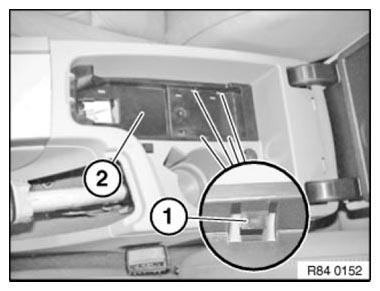

Catches (1) on trim (2) must not be damaged or missing.

Fig 4: Identifying Catches On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
