63 25 000 Removing and installing/replacing auxiliary brake light

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Unclip auxiliary brake light cover (1) at retaining points (3).

Remove auxiliary brake light cover (1) in direction of arrow from roofliner (2).

Fig 1: Removing Auxiliary Brake Light Cover And Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hooks (3) and guides (2) of auxiliary brake light cover (1) must not be damaged.

Make sure cover for auxiliary brake light (1) is correctly seated.

Fig 2: Identifying Retaining Hooks, Guides And Auxiliary Brake Light Cover

Courtesy of BMW OF NORTH AMERICA, INC.

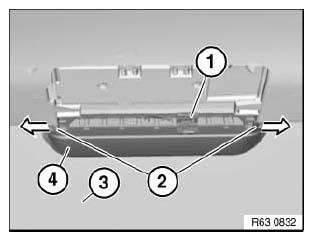

Unfasten plug connection (1) and disconnect.

Unlock slide (2) in direction of arrow and remove auxiliary brake light (4) from rear window (3).

Installation:

Make sure auxiliary brake light (4) is correctly positioned on rear window (3).

Fig 3: Removing Auxiliary Brake Light From Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.
