37 15 055 Removing and installing (replacing) EDC control unit (M3)

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove right luggage compartment wheel arch trim

Remove cable ties (1) from body.

Feed cable (2) out of insulating mat (3) and lay insulating mat to one side.

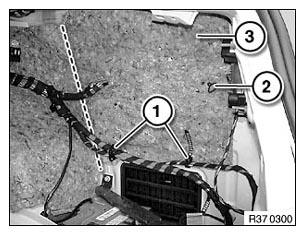

Fig 1: Identifying Cable Of Insulating Mat And Cable Ties

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove equipment carrier (2).

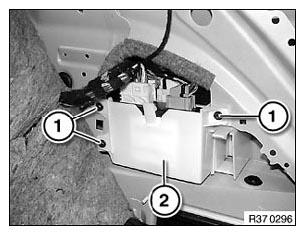

Fig 2: Identifying Equipment Carrier With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unlock catch (2) and lift control unit (3) out of equipment carrier.

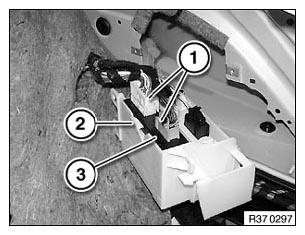

Fig 3: Identifying Plug Connection, Catch And Control Unit Of Equipment Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Replacement only: Carry out Vehicle programming and encoding
