37 14 017 Removing and installing/replacing front mounted acceleration sensor (M3)

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks

Remove FRONT WHEEL ARCH COVER (REAR SECTION)

Disconnect plug connection (1).

Release screws (2) and remove mounted acceleration sensor (3).

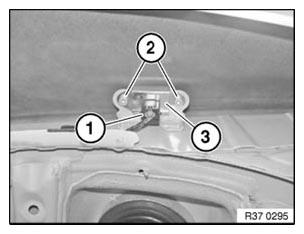

Fig 1: Identifying Plug Connection And Acceleration Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
