65 12 220 Removing and installing/replacing satellite radio (US version only until 09/2009)

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

NOTE: FOLLOW INSTRUCTIONS FOR HANDLING OPTICAL FIBRES.

Necessary preliminary tasks

Disconnect BATTERY NEGATIVE LEAD
Remove LUGGAGE COMPARTMENT FLOOR PANEL

Disconnect plug connection (1).

Release screws (2) and feed out satellite tuner (3).

Installation:

Unlock plug connections correctly.
Bracket (4) must be inserted in guides on floor pan.

Fig 1: Identifying Satellite Tuner With Plug Connection, Screws And Bracket
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Release screws (1) and remove

bracket (2) from satellite tuner (3).

Fig 2: Identifying Satellite Tuner With Screws And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing, please observe

Record ID number (2) of the removed device.

NOTE: The ID number (2) can be found on the label of the housing. Above the barcode the text reads "Sirius ID" (1) and next to it is the company's logo "Sirius Satellite Radio" (3).

Record ID number (2) of the new device.

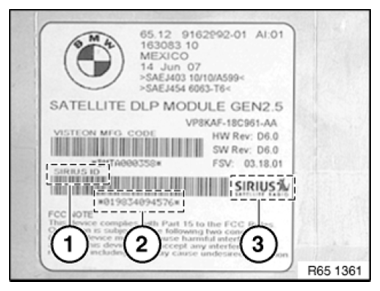

Fig 3: Identifying Sirius ID, ID Number And Sirius Satellite Radio Logos

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Carry out vehicle

programming/encoding.

NOTE: Please contact Sirius. Use the ID number to cancel current device and register new one.
