65 24 020 Removing and installing or replacing blocking circuit

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove PANEL FOR ROOF PILLAR ON REAR LEFT .

Unlock plug connections (1) and disconnect.

Release screw (2).

Remove blocking circuit (3) from C-pillar (4).

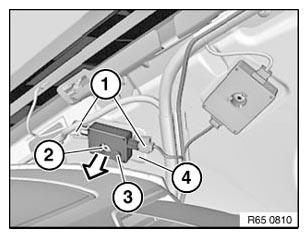

Fig 1: Removing Blocking Circuit From C-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit blocking circuit (1) so that screw (2) engages thread (3) and locating pin (4) engages bore (5).

Fig 2: Identifying Blocking Circuit, Screw, Engages Thread, Locating Pin And Engages Bore

Courtesy of BMW OF NORTH AMERICA, INC.
