25 12 060 Replacing shift lever knob for twin clutch transmission S65

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

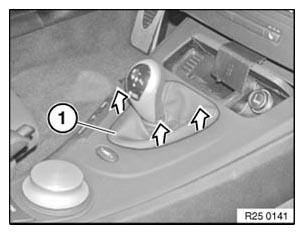

Press installation frame of gaiter (1) a little from front to rear and release gaiter from center console.

Fig 1: Removing Gaiter From Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not twist shift lever knob during removal as this would cause the turning lock in the knob to shear off.

Tug firmly to remove knob.

Installation:

Fit shift lever knob on shift lever, align and press on until it snaps noticeably into place.

Fig 2: Fitting Shift Lever Knob On Shift Lever

Courtesy of BMW OF NORTH AMERICA, INC.

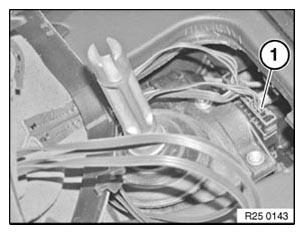

Disconnect connector (1).

Installation:

Note installation position of cables.

Fig 3: Identifying Connector

Courtesy of BMW OF NORTH AMERICA, INC.
