26 11... Overview of propeller shaft (constant-velocity joint)

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

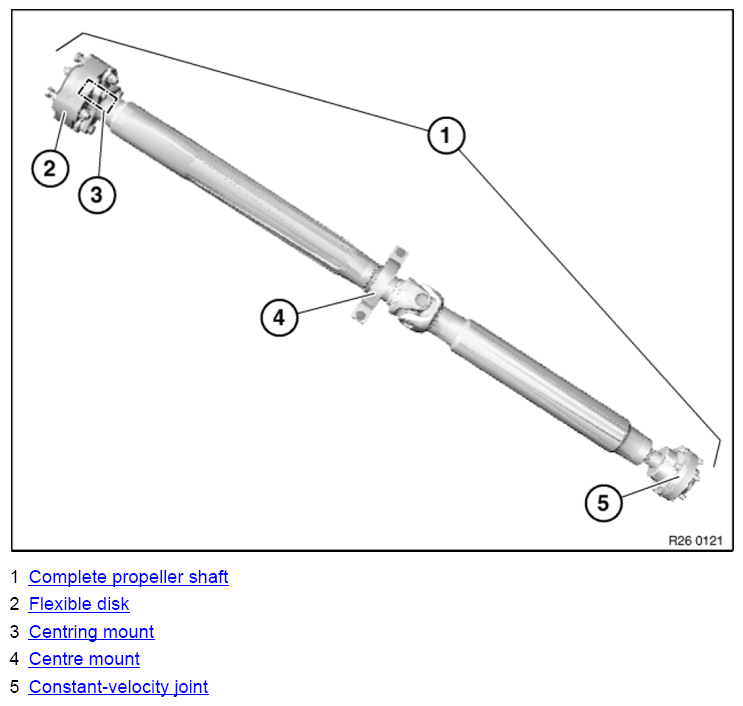

Fig 1: Overview Of Propeller Shaft (Constant-Velocity Joint)
G06921448Courtesy of BMW OF NORTH AMERICA, INC.
  1. Complete propeller shaft
  2. Flexible disk
  3. Centering mount
  4. Centre mount
  5. Constant-velocity joint
