52 24 400 Replacing seat cover for rear seat

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, and 2009 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR SEAT

Unclip Isofix protective caps.

Installation:

Make sure Isofix protective caps are correctly engaged.

Fig 1: Identifying Isofix Protective Caps

G04727325

Courtesy of BMW OF NORTH AMERICA, INC.

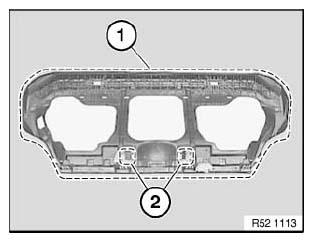

Lever out welt in area (1) with plastic wedge.

Unhook seat cover in area (2).

Fig 2: Identifying Hook Seat Cover In Area

G04727326

Courtesy of BMW OF NORTH AMERICA, INC.

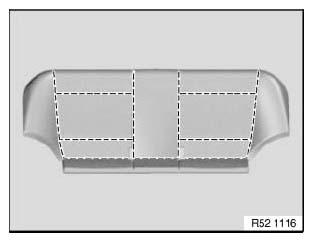

Detaching cover and padding:

Release all retainers in marked area.
Remove seat cover from padding.
Remove remaining retainers from cover and padding

Fig 3: Identifying Retainer Location

G04727327

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new retainer (2) with special tool 52 0 050 PLIERS and bend closed.

Padding
Retainer
Trim thread in padding
Trim thread in seat cover
Seat cover

Fig 4: Bending Retainer Using Special Tool (52 0 050)

G04727328

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Pull all trim wires out of seat cover
If necessary, cut in take-up for trim wires of new cover
Push trim wires into new seat cover

Fig 5: Identifying Trim Wires Location On Seat Cover

G04727329

Courtesy of BMW OF NORTH AMERICA, INC.
