16 14 500 Removing and installing or replacing control unit for electric fuel pump

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks

E81, E82, E87, E91, E92 and E84:
Remove BACKREST SIDE SECTION for right rear seat
E90:

Remove BACKREST

Disconnect plug connection (1).

Release nuts (2) and remove control unit (3).

Installation:

Tightening torque 16 14 2AZ .

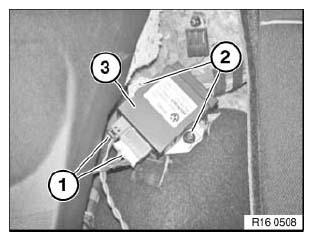

Fig 1: Identifying Plug Connection, Nuts And Electric Fuel Pump Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement
