28 50 001 Manual emergency release of transmission lock (GS7D36SG) S65

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

In the event of a power supply interruption, e.g. flat battery or electrical fault, the transmission lock must be manually released, otherwise the wheel will be locked and the vehicle cannot be moved.

IMPORTANT: Secure vehicle with appropriate means/equipment against rolling off. (e.g. chocks, parking brake).
Press the brake pedal when manually releasing the transmission lock.

Press installation frame of gaiter (1) a little from front to rear and release gaiter from center console.

Fig 1: Pressing Installation Frame Of Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Insert a suitable tool in cover (1) and fold open towards front.

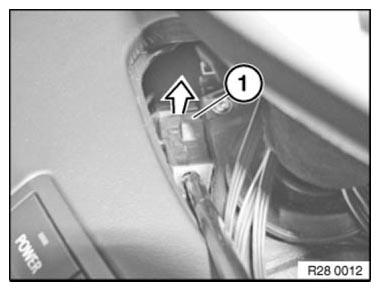

Fig 2: Inserting Suitable Tool On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Insert tool in lock (1) and fold towards rear.

Transmission lock is released.

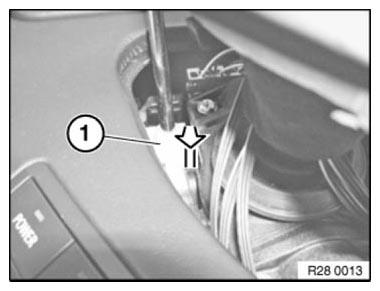

Fig 3: Inserting Tool On Lock

Courtesy of BMW OF NORTH AMERICA, INC.
