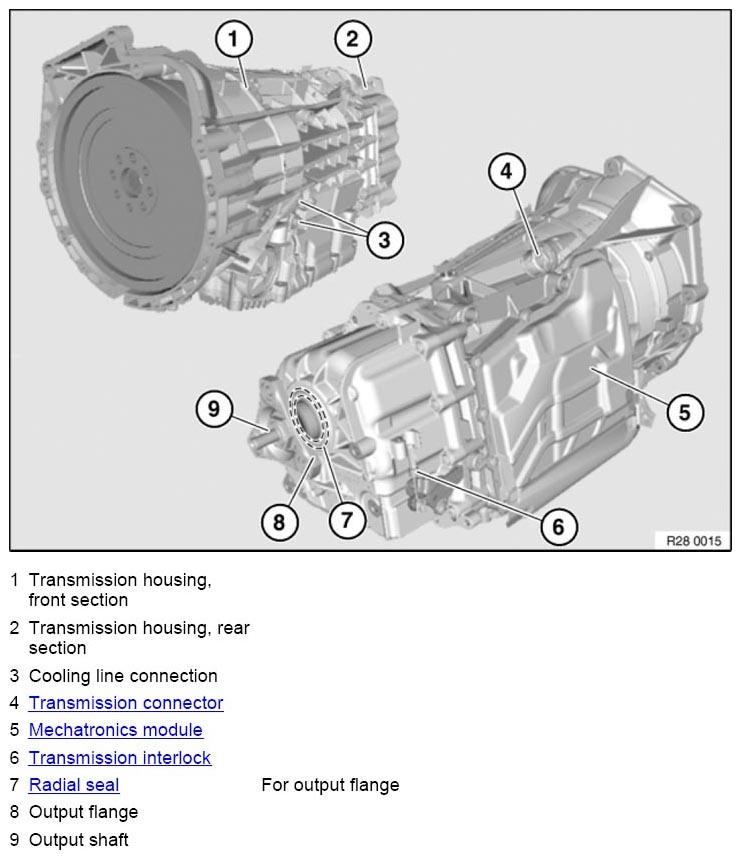

28 00.. Overview of transmission housing (GS7D36SG)
WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
0 General information Transmission designations, complete transmission, check fluid level, mechatronics
- Transmission housing, front section
- Transmission housing, rear section
- Cooling line connection
- Transmission connector
- Mechatronics module
- Transmission interlock
- Radial seal For output flange
- Output flange
- Output shaft
