67 16 011 Removing and installing/replacing left vertical aim adjuster (xenon headlight)

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage!
Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (control unit, ignition unit with lamp) may only be carried out by specialist personnel.

Necessary preliminary tasks

Remove WHEEL ARCH COVER FRONT SECTION at front

NOTE: For purposes of clarity, following illustrations show headlight removed.

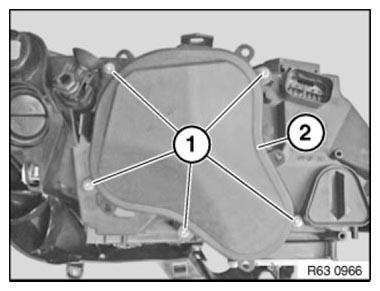

Release screws (1) and remove cover (2).

Fig 1: Identifying Cover With Screws

G06922942

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Fig 2: Identifying Screws

G04753497

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Slide headlight insert (2) upwards in direction of arrow.

Move vertical aim adjuster (3) downwards in direction of arrow and feed out.

Fig 3: Sliding Headlight Insert

G04753498

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed ball head of vertical aim adjuster (1) into mounting (2).

Fig 4: Identifying Vertical Aim Adjuster Into Mounting

G04727721

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

ADJUST HEADLIGHTS
