67 61 005 Replacing drive with gear (front) for actuating slide/tilt sunroof

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove ROOF SWITCH CLUSTER

NOTE: Secure drive with gear for actuating slide/tilt sunroof (3) against falling out.

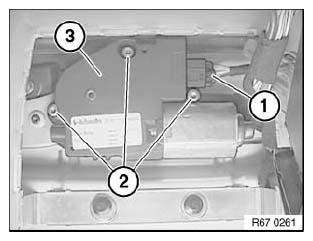

Unfasten plug connection (1) and disconnect.
Release screws (2), tightening torque 54 13 1AZ .

NOTE: Screws (2) are microencapsulated.
Remove drive with gear for actuating slide/tilt sunroof (3).

Fig 1: Identifying Actuating Slide/Tilt Sunroof With Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

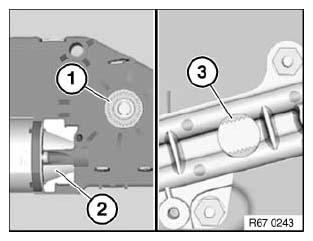

Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) exactly in gear teeth (3).

Fig 2: Identifying Gear Wheel, Actuating Slide/Tilt Sunroof And Gear Teeth

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Initialize GLASS SLIDE/TILT SUNROOF (INITIALIZATION/NORMAL OF CHARACTERISTIC CURVE)
