67 31 521 Removing and installing/replacing drive unit for seat height adjustment
WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove FRONT SEAT

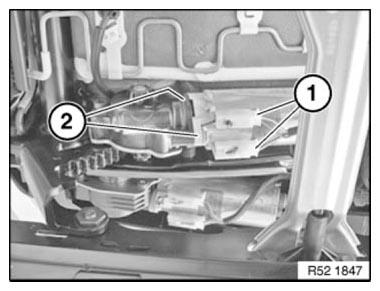

Unlock plug connections (1) and disconnect.
Unfasten screws (2).
Remove drive unit for seat height adjustment.
Installation:
Make sure drive shaft is correctly seated in gearbox.
