13 62 605 Replacing pulse generator on right exhaust camshaft (S65)

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder bank 1 to 4)

Necessary preliminary tasks

Read out fault memory of DME control unit; if necessary, work through test schedules
Switch off ignition
Release and raise coolant expansion tank. Do not kink hoses.
Remove right ignition coil cover

Release plug connector (1) and pull off.

Release screw.

Remove pulse generator (2).

Installation

Aluminum screws must always be replaced.

Replace sealing ring and coat with antiseize agent.

Tightening torque, 13 62 5AZ

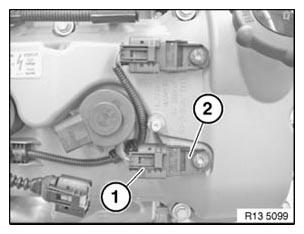

Fig 1: Identifying Plug Connector And Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Now clear the fault memory.
