64 11 992 Removing and installing/replacing solar sensor

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Lever out solar sensor (1) with special tool 00 9 340 REMOVAL AID in direction of arrow.

NOTE: Secure disconnected wiring harness of solar sensor (1) against falling out below instrument panel trim (2).

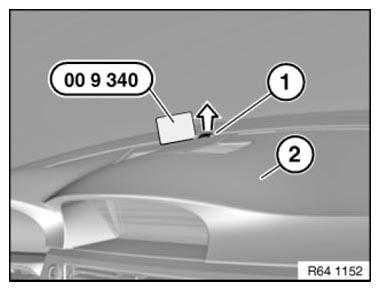

Fig 1: Removing Solar Sensor From Instrument Panel Trim Using Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect associated plug connection and remove solar sensor (1) from instrument panel trim (2).
