72 12 004 Removing and installing/replacing knee airbag module for driver protection

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.

Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD .
Remove LIGHT CONTROL UNIT .

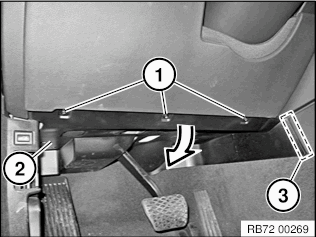

Release screws (1).

Feed out trim panel for pedal mechanism (2) from marked area (3) and set down towards bottom.

Installation note:

Make sure trim panel is correctly fitted (marked area).

Fig 1: Removing Knee Airbag Module For Driver Protection (1 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

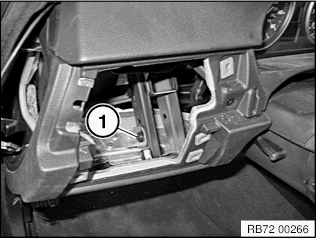

Release screws (1).

Fig 2: Removing Knee Airbag Module For Driver Protection (2 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

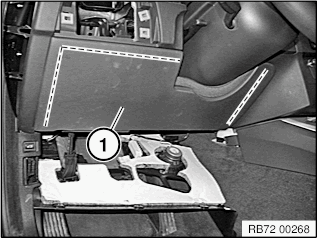

Release screw (1).

Fig 3: Removing Knee Airbag Module For Driver Protection (3 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

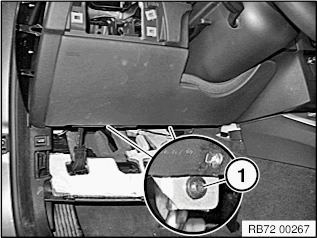

Release screw (1).

Fig 4: Removing Knee Airbag Module For Driver Protection (4 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Always replace airbag module for driver protection completely!

Do not carry out any repairs on airbag module!
