Labelling of generation 2.4 and 3.3 wheel electronics

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Data Matrixcode
  2. BMW part number
  3. FCC ID = radio authorization
  4. Wheel electronics ID
  5. Transmission frequency
  6. Pressure sensor
  7. Production date of wheel electronics
  8. Tightening torque
  9. Width across flats of union nut

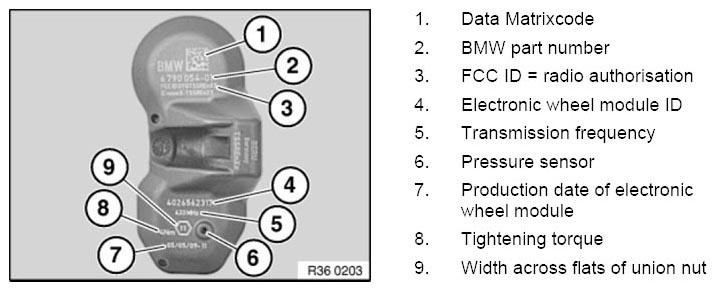

    Fig 1: Identifying Labels On Gen2.4 And Gen3.3 Wheel Electronics
    G06890127Courtesy of BMW OF NORTH AMERICA, INC.
