34 21... Overview of rear brake

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

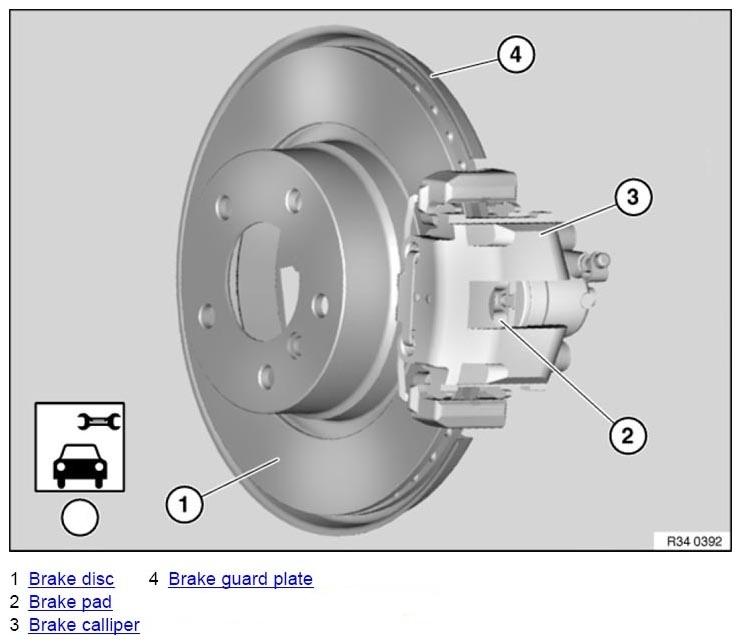

Fig 1: Overview Of Rear Brake
G06921986Courtesy of BMW OF NORTH AMERICA, INC.
  1. Brake disc
  2. Brake pad
  3. Brake caliper
  4. Brake guard plate
  5. Checking thickness of brake pad
