34 11... Overview of front brakes

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

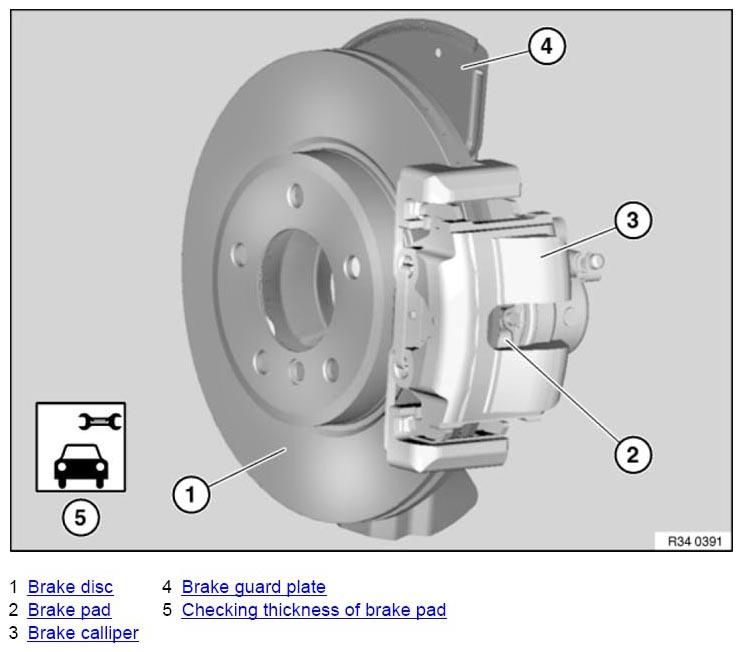

Fig 1: Overview Of Front Brakes
G06921956Courtesy of BMW OF NORTH AMERICA, INC.
  1. Brake disc
  2. Brake pad
  3. Brake caliper
  4. Brake guard plate
  5. Checking thickness of brake pad
