34 52... Overview of electronic components

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

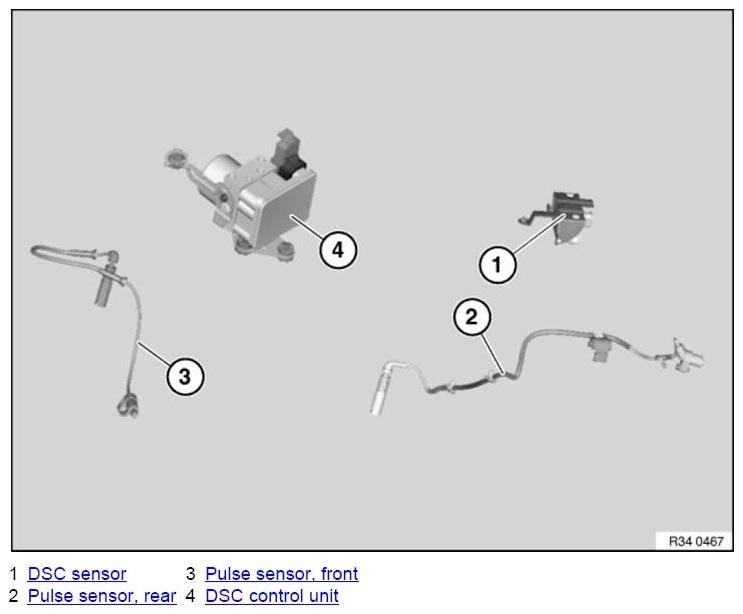

Fig 1: Overview Of Electronic Components
G06922068Courtesy of BMW OF NORTH AMERICA, INC.
  1. DSC sensor
  2. Pulse sensor, rear
  3. Pulse sensor, front
  4. DSC control unit
