34 32... Overview of brake lines

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

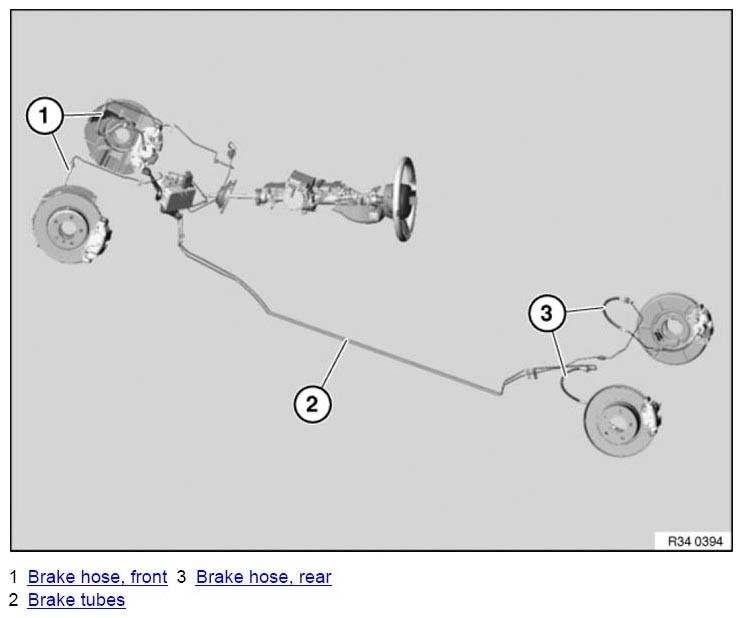

Fig 1: Overview Of Brake Lines
G06922015Courtesy of BMW OF NORTH AMERICA, INC.
  1. Brake hose, front
  2. Brake tubes
  3. Brake hose, rear
