51 13 017 Removing and installing/replacing frame for grille in engine hood/bonnet on left or right

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Lever out frame (1) with special tool 00 9 323 SCRAPER along dashed line.

Carefully pull frame (1) in direction of arrow out of guide and remove.

Installation:

Make sure frame (1) is correctly seated in respective locators.

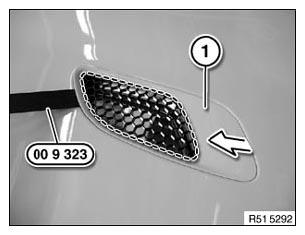

Fig 1: Pulling Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and guides (2) must not be damaged.

Fig 2: Identifying Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
