51 34 160 Removing and installing/replacing housing cover on inner left or right door window frame

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Open door window.
Remove rear DOOR TRIM PANEL

Version with roller sun blind:

Remove ROLLER SUN BLIND ON FIXED SIDE WINDOW

Version with roller sun blind:

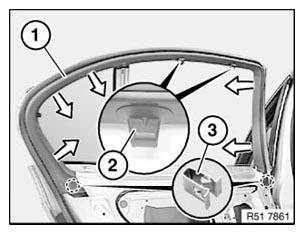

Pull off hooks (2) in outwards direction.

Detach cover (1) sideways from clips (3) and unclip in inwards direction or lever out and remove.

Fig 1: Pulling Hooks In Outwards Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

If necessary, release screw (1) on hook (2).

Remove hook (2) in direction of arrow from cover (4).

Fig 2: Removing Hook From Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version without roller sun blind:

Lever out cover (1) at clips (2).

Unclip cover (1) in direction of arrow or lever out and remove.

NOTE: Do not tear off cover (1) in area (3).

Fig 3: Removing Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of cover (1) must not be damaged:

2 All-round guide

3 Connection point

Fig 4: Identifying Cover And Connection Point

Courtesy of BMW OF NORTH AMERICA, INC.
