51 37 000 Removing and installing/replacing complete rear left or right power window regulator

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Disengage, but do not remove, door window and secure in the door window frame.

Necessary preliminary work

DOOR WINDOW GLASS, REAR

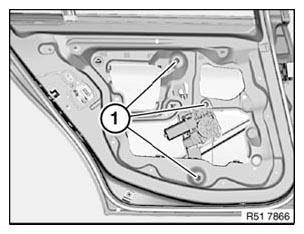

Unscrew nuts (1).

Tightening torque 51 35 2AZ.

Fig 1: Identifying Rear Power Window Unit Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

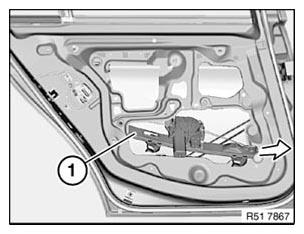

Turn power window unit (1) in rear door and feed out in direction of arrow.

Fig 2: Removing Rear Door Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Release screws (1) and detach flat motor (2) from power window unit (3).

Tightening torque 51 35 1AZ.

Fig 3: Detaching Flat Motor For Power Window Unit From Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.
