51 12 801 Removing and installing/replacing holder for rear left or right bumper

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR BUMPER TRIM

E93 only:

If necessary, release aerial/antenna holders (1 and 2) from holder (3).

Installation:

If necessary, replace faulty aerial/antenna holders (1 and 2).

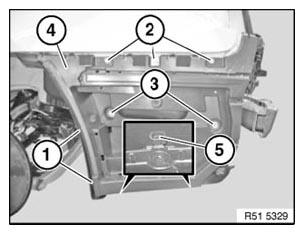

Fig 1: Identifying Antenna Holders And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 and 2).

Release nuts (3) and remove bracket (4).

Installation:

Make sure lugs (5) of underbody panelling run into guides on holder (4) at bottom.

Fig 2: Identifying Nuts, Bracket, Lugs Of Underbody Panelling Run And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Modify sheet nuts (3)
Replace foam seal (4)

Installation:

Catches (1) and guides (2) must not be damaged.

If necessary, replace faulty metal nuts (3).

Fig 3: Identifying Catches, Guides, Sheet Nuts And Foam Seal

Courtesy of BMW OF NORTH AMERICA, INC.
