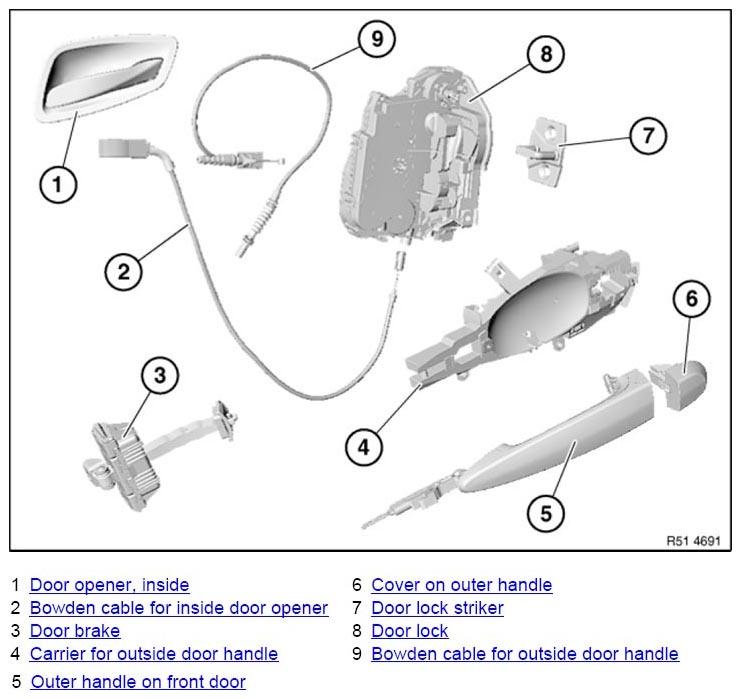

51 22... Overview of rear door locks
WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of BMW OF NORTH AMERICA, INC.
- Door opener, inside
- Bowden cable for inside door opener
- Door brake
- Carrier for outside door handle
- Outer handle on front door
- Cover on outer handle
- Door lock striker
- Door lock
- Bowden cable for outside door handle
