51 16... Overview of storage compartment (center console)

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

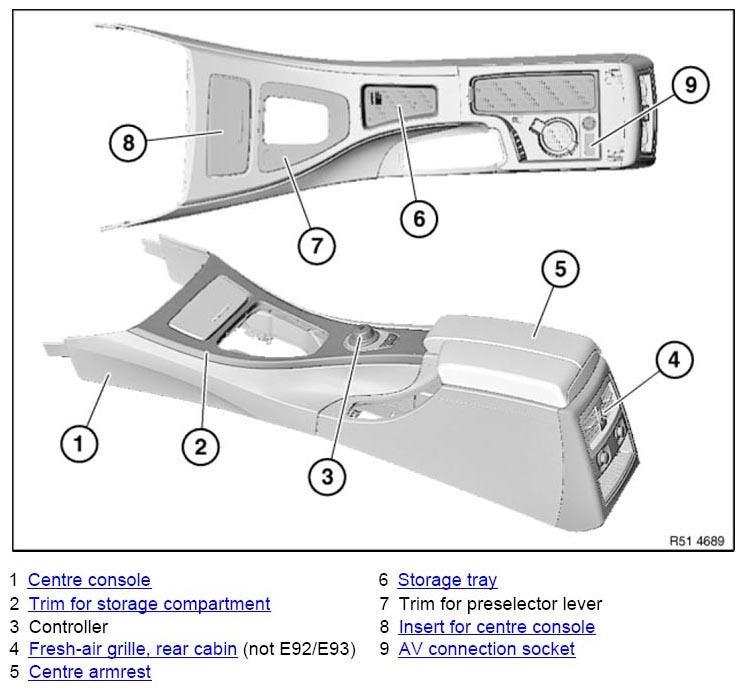

Fig 1: Overview Of Storage Compartment (Centre Console)
G06918959Courtesy of BMW OF NORTH AMERICA, INC.
  1. Centre console
  2. Trim for storage compartment
  3. Controller
  4. Fresh-air grille, rear cabin (not E92/E93)
  5. Centre armrest
  6. Storage tray
  7. Trim for preselector lever
  8. Insert for center console
  9. AV connection socket
