51 12.. Overview of rear bumper

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

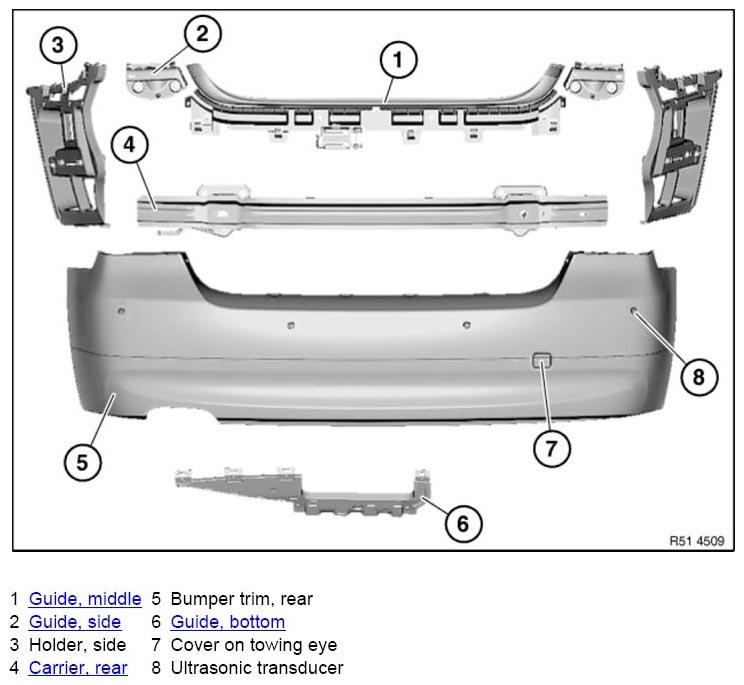

Fig 1: Overview Of Rear Bumper
G06918955Courtesy of BMW OF NORTH AMERICA, INC.
  1. Guide, middle
  2. Guide, side
  3. Holder, side
  4. Carrier, rear
  5. Bumper trim, rear
  6. Guide, bottom
  7. Cover on towing eye
  8. Ultrasonic transducer
