51 12.. Overview of rear bumper (M Technic aerodynamic kit)

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

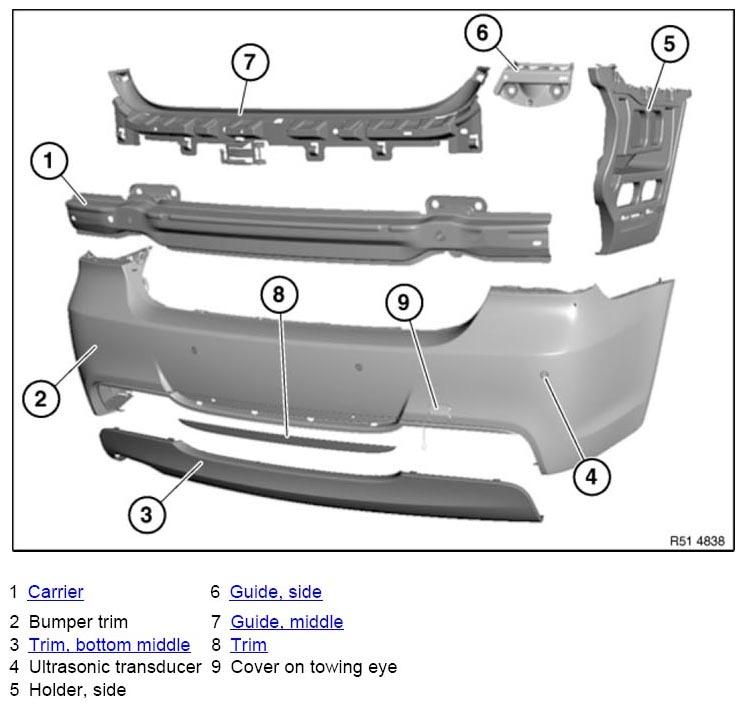

Fig 1: Overview Of Rear Bumper (M Technic Aerodynamic Kit)
G06918956Courtesy of BMW OF NORTH AMERICA, INC.
  1. Carrier
  2. Bumper trim
  3. Trim, bottom middle
  4. Ultrasonic transducer
  5. Holder, side
  6. Guide, side
  7. Guide, middle
  8. Trim
  9. Cover on towing eye
