51 00.. Overview of rear door

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

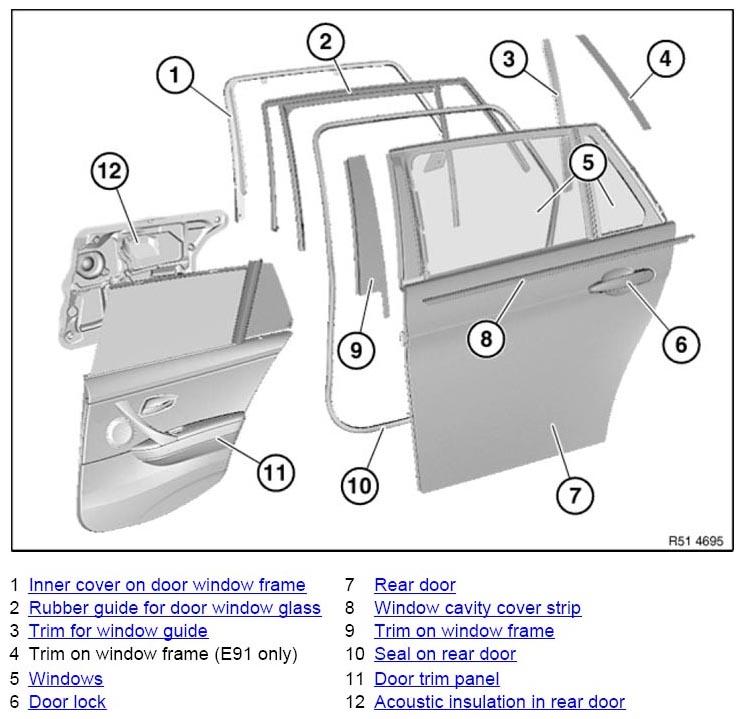

Fig 1: Overview Of Rear Door
G06918957Courtesy of BMW OF NORTH AMERICA, INC.
  1. Inner cover on door window frame
  2. Rubber guide for door window glass
  3. Trim for window guide
  4. Trim on window frame (E91 only)
  5. Windows
  6. Door lock
  7. Rear door
  8. Window cavity cover strip
  9. Trim on window frame
  10. Seal on rear door
  11. Door trim panel
  12. Acoustic insulation in rear door
