Section 2789 (Body Equipment - Repair - E90)
>>
Front Manually Operated Windows
>>
51 00.. Overview of front door
51 00.. Overview of front door
WARNING:
This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

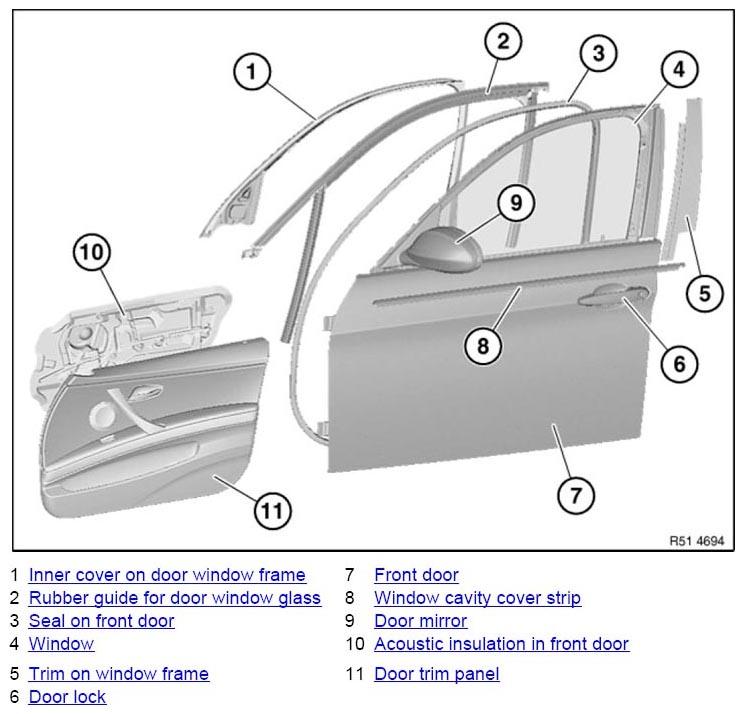

Fig 1: Overview Of Front Door
Courtesy of BMW OF NORTH AMERICA, INC.
