51 31 025 Replacing left or right gutter strip along windscreen

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove GUTTER STRIP

NOTE: To facilitate installation, coat seal and gutter strip with water.

Fit inner part (1) of seal in accordance with measurements (A and B) on gutter strip (2).

A= approx. 30 mm

B= approx. 15 mm

Push seal (1) onto gutter strip (2) until both are flush in area (3).

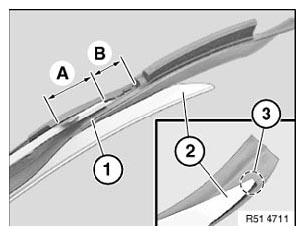

Fig 1: Identifying Seal Onto Gutter Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Outer part (2) and inner part (3) of seal must not be stretched.

Fit outer part (2) and inner part (3) of seal on complete gutter strip (1).

If necessary, use special tool 00 9 323 SCRAPER as an aid.

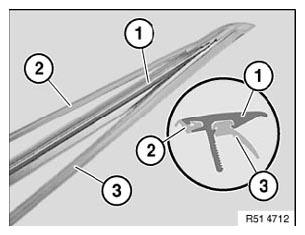

Fig 2: Identifying Seal Outer Part And Inner Part On Gutter Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Align seal (1) to gutter strip (2) and secure in area (3) with Loctite 380 (sourcing reference: BMW Parts Service).

A= Gutter strip, top

B= Gutter strip, bottom

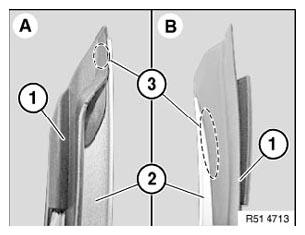

Fig 3: Identifying Seal And Gutter Strip

Courtesy of BMW OF NORTH AMERICA, INC.
