33 55 040 Replacing anti-roll bar links for stabilizer bar
WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Remove OUTPUT SHAFT .

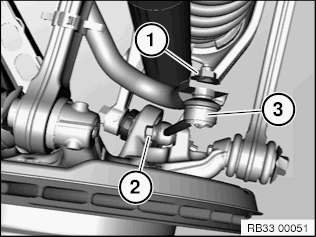

Release nut (1), brace with special tool 31 1 140 .
Tightening torque 33 55 2AZ .
Release screw (2).
Tightening torque 33 55 3AZ .
Remove anti-roll bar link (3) towards top.
Installation note:
Replace self-locking nut and screw.
