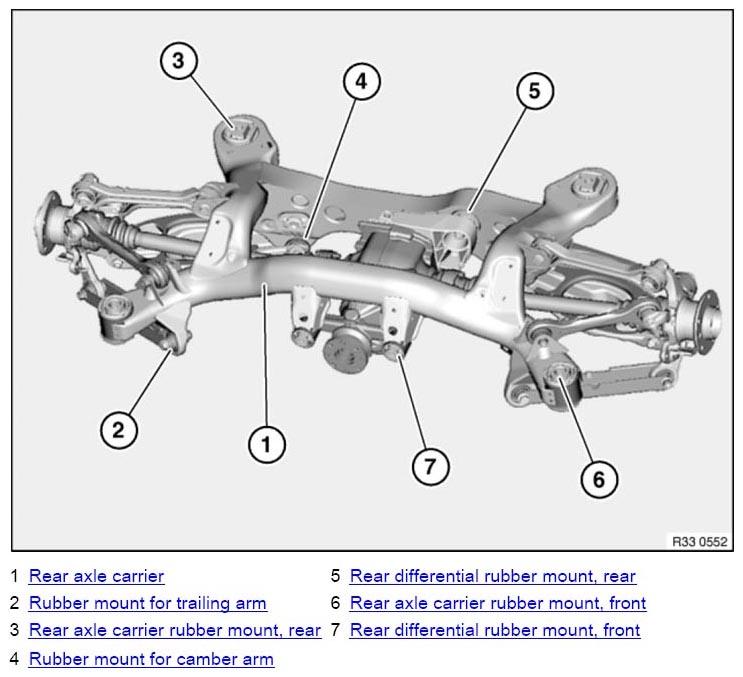

33 31... Overview of rear axle carrier with rubber mounts
WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
- Rear axle carrier
- Rubber mount for trailing arm 6 Rear axle carrier rubber mount, front
- Rear axle carrier rubber mount, rear 7 Rear differential rubber mount, front
- Rubber mount for camber arm
- Rear differential rubber mount, rear
- Rear axle carrier rubber mount, front
- Rear differential rubber mount, front
