33 10.. Overview of rear differential/output shafts

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

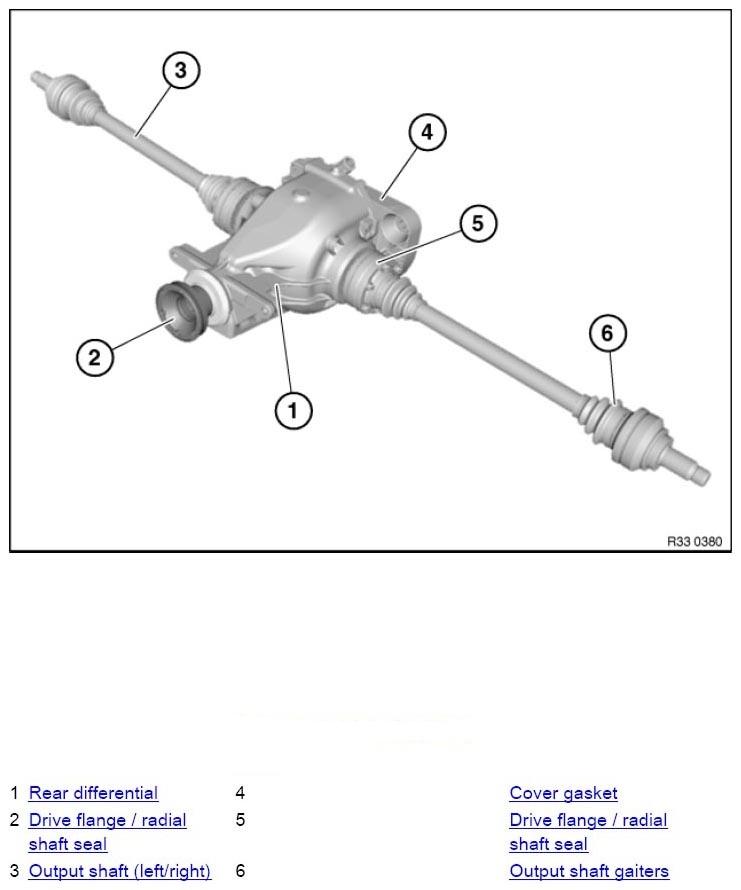

Fig 1: Overview Of Rear Differential/Output Shafts

Courtesy of BMW OF NORTH AMERICA, INC.

Rear differential
Drive flange/radial shaft seal
Output shaft (left/right)
Cover gasket
Drive flange/radial shaft seal
Output shaft gaiters
