33 17 005 Replacing rubber mount for rear differential mounting at rear (M3)

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR DIFFERENTIAL

Withdraw PUR mount with special tools 33 0 101, 33 0 102, 33 0 105, 33 0 106 from rear axle carrier (1).

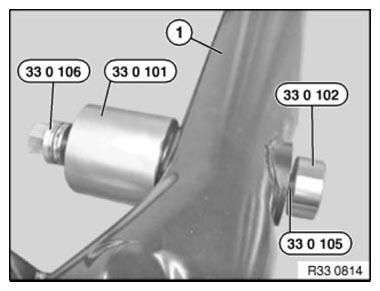

Fig 1: Removing PUR Mount Using Special Tools From Rear Axle Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Coat bearing bushing in rear axle carrier and new rear PUR mount (2) with Circolight.

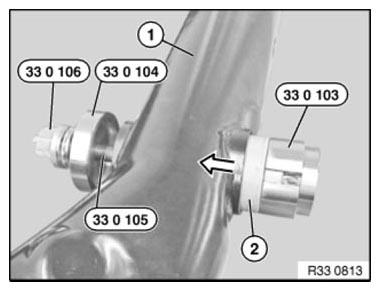

Fig 2: Removing PUR Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Draw PUR mount (2) in direction of arrow with special tools 33 0 103, 33 0 104, 33 0 105 and 33 0 106 into rear axle carrier (1).

Installation:

Observe mounting sequence.

Mounting sequence

To avoid damaging the PUR mount (1), draw in the mount in stages.

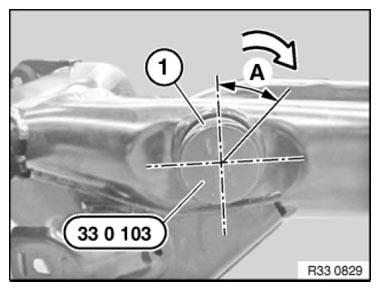

Fig 3: Turning Special Tool 33 0 103

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure:

Draw PUR mount (1) 5 mm into rear axle carrier
Release special tool 33 0 100 DEVICE .
Turn special tool 33 0 103 in direction of arrow (A) 45°
Repeat procedure until PUR mount (1) is pressed in up to stop
