33 32 190 Removing and installing/replacing left or right camber arm (M3)

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the camber arm is detached from the rear axle carrier/wheel carrier, it is necessary after reinstallation to carry out a wheel/chassis alignment check.

Necessary preliminary tasks

Remove COIL SPRING AT REAR
Remove REAR MUFFLER

IMPORTANT: Mark position of eccentric bolt (1) to camber arm (2).

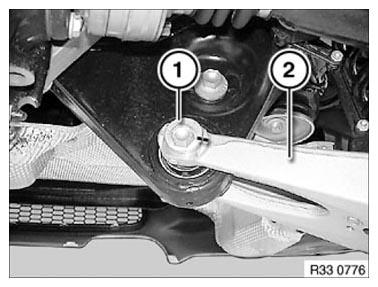

Fig 1: Identifying Camber Arm With Eccentric Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Remove jointed rod (2) from camber arm bracket.

Installation:

Sensor lever (3) must point starting from ride-height sensor to left rear wheel.

Tightening torque 37 14 3AZ .

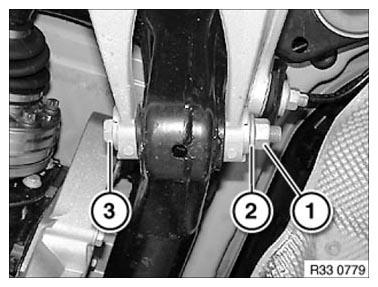

Fig 2: Identifying Jointed Rod Of Camber Arm Bracket With Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Support wheel carrier with workshop jack.

Release screw (1).

Installation:

Bolt head must point to rear.

Tighten down bolt connection in NORMAL POSITION .

Tightening torque 33 52 4AZ .

Fig 3: Identifying Wheel Carrier With Workshop Jack With Nut And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (3) and remove bolt (2).

Installation:

Bolt head must point to rear.

Replace self-locking nut.

Tightening torque 33 32 10AZ .

Release nut (1) and remove eccentric washer (2).

Unscrew eccentric bolt (3) and remove camber arm.

Installation:

Bolt head must point to front.

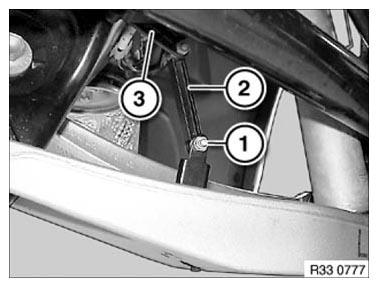

Fig 4: Identifying Eccentric Washer Nut And Camber Arm Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only: Carry over marking from old part to new part.

Install eccentric washer.

Replace self-locking nut.

Align eccentric screw by means of marking to camber arm.

Tightening torque 33 32 9AZ .

Replacement

Replace lower spring pad (1).

Installation:

Make sure lower spring pad is correctly seated.

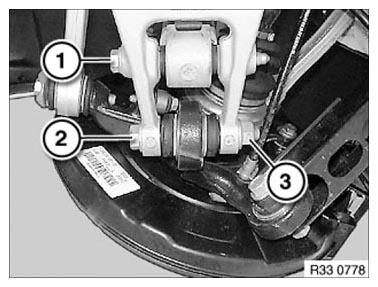

Fig 5: Identifying Lower Spring Pad And Holder With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Version with xenon lights:

Release nut, remove screw (2) and holder (3).

Installation:

Screw head must point upwards.

Tightening torque 37 14 4AZ .

After installation

Perform CHASSIS ALIGNMENT CHECK
